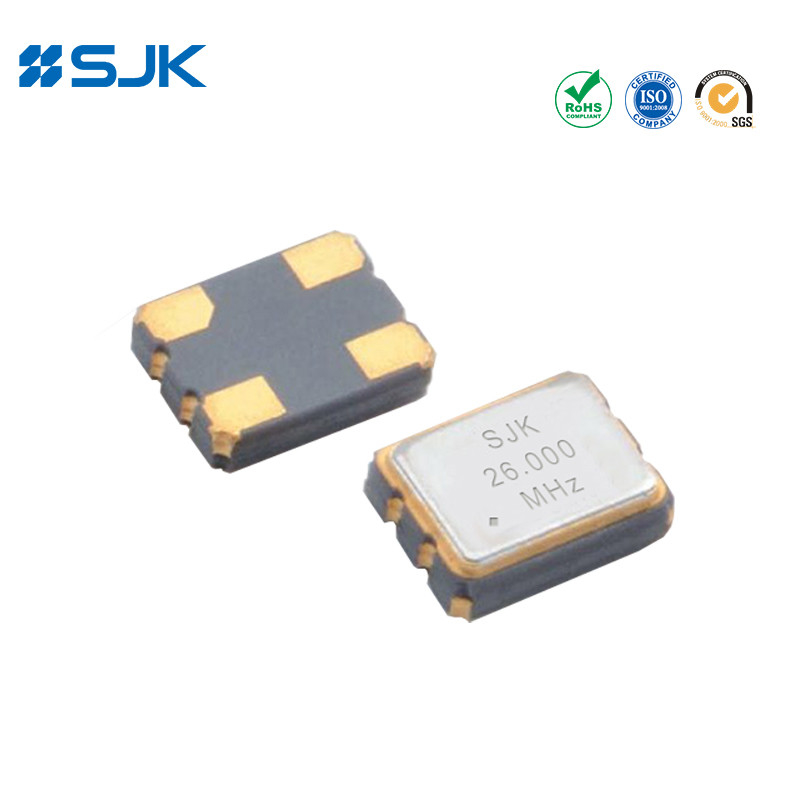

Name: 26MHz 3.3V TCXO 2520 Clipped Sine Wave Output ± 0.5ppm -40- 85C Stabilitas Frekuensi Tinggi
Brand: Shenzhen Crystal Technology Industrial Co., Ltd.
SKU: SJK-7Q26000M3C04K0A6
Price: 1,499.05 USD
Availability: InStock

Nama merek:	SJK
Nomor Model:	SJK-7Q26000M3C04K0A6
MOQ:	3000PCS
Harga:	negotiable
Rincian kemasan:	3Kpcs/Gulungan
Ketentuan Pembayaran:	T/T

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

SGS, RoHS, REACH

Model:

7Q series SMD TCXO

Frequency range:

26.000MHz

Supply voltage:

3.3V

Output type:

Clipped sine wave

Size:

2.5*2.0*0.85mm

Stabilitas Frekuensi:

±0,5ppm~±1,0ppm

Applications:

GPS, Wireless Communications, Mobile Phone, etc.

Type:

SMD

Paket:

2520

Pad:

4 pads

Menyediakan kemampuan:

70KKpcs/M

Menyoroti:

Stabilitas Frekuensi Tinggi TCXO

26MHz TCXO

3.3V TCXO

Deskripsi Produk

SMD 2520 TCXO 26MHz 3.3V Clipped Sine Wave Output ± 0.5ppm -40~+85°C

Fitur

Logika output LVCMOS, kisaran frekuensi dari 10MHz hingga 60MHz

Ukuran 2520, SMD tinggi 0,80mm TCXO /VC-TCXO

Operasi tegangan rendah: 1.8V, 2.5V, 2.8V, 3.3V

Stabilitas frekuensi: ±2ppm~±5ppm

Fungsi 3-state

Pemasangan otomatis dan pemasangan arus kembali

Aplikasi: Ponsel, Komunikasi Wireless, IoT, GPS, WLAN, dan banyak lagi

RoHS Compliant & Bebas Pb

Spesifikasi

Jenis		SMD seri 7Q TCXO
Jenis output		CMOS
Beban output		15pF
Tegangan Pasokan		1.8~3.3V
Jangkauan Frekuensi		10~60MHz
Pasokan arus		10mA maksimal.
Tingkat output		0.1Vcc /0.9Vcc
Stabilitas Frekuensi	Toleransi	±2,0ppm Maks. (setelah 2 aliran kembali)
	vs Suhu	± 2 ppm ~ ± 5 ppm
	Vs Tegangan Pasokan	± 0,2 ppm Max.	± 0,2 ppm Max.
	vs Penuaan	± 1,0 ppm Maks./tahun
Siklus Tugas		45 ~ 55%
Waktu Naik / Turun		8 inci maksimal.
Waktu Mulai		5ms maksimal.
Suhu operasi		-40~+85°C, atau tentukan
Fase Noise @26MHz	100Hz	-110dBc/Hz
	1KHz	-130dBc/Hz
	10KHz	-145dBc/Hz
Unit Pengemasan		3000 pcs/reel

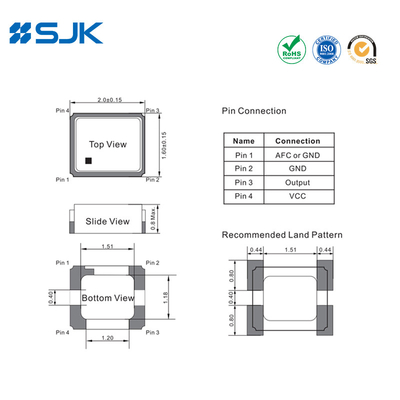

Dimensi [mm]

26MHz 3.3V TCXO 2520 Clipped Sine Wave Output ± 0.5ppm -40- 85C Stabilitas Frekuensi Tinggi 0

26MHz 3.3V TCXO 2520 Clipped Sine Wave Output ± 0.5ppm -40- 85C Stabilitas Frekuensi Tinggi 1 +86-755-88352869

26MHz 3.3V TCXO 2520 Clipped Sine Wave Output ± 0.5ppm -40- 85C Stabilitas Frekuensi Tinggi 2 Rita@q-crystal.com
