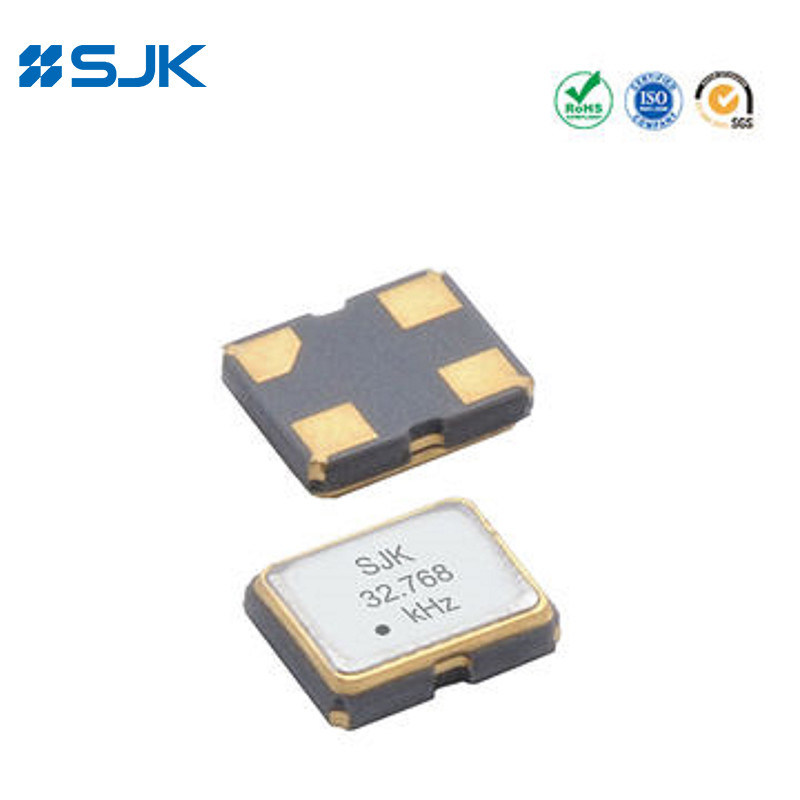

Name: SMD 2520 RTC Oscillator Dengan 32.768KHz Real Time Crystal Oscillator 1.8-3.3V CMOS
Brand: Shenzhen Crystal Technology Industrial Co., Ltd.
SKU: SJK-2D
Price: 1,499.05 USD
Availability: InStock

Nama merek:	SJK
Nomor Model:	SJK-2D
MOQ:	3000PCS
Harga:	negotiable
Rincian kemasan:	3Kpcs/Gulungan
Ketentuan Pembayaran:	T/T

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

SGS, RoHS, REACH

Model:

Osilator SMD Seri 2D 32,768kHz

Frekuensi nominal:

32,768 kHz

Tegangan suplai:

1,8 ~ 3,3V

Stabilitas Frekuensi:

±25ppm

Ukuran:

2.5*2.0*0.8mm

Jenis output:

CMOS

Aplikasi:

Real-time Clock Application, DSC, Set-top Box, HDTV, dll

Menyediakan kemampuan:

70KKpcs/M

Menyoroti:

Real Time RTC Oscillator

SMD 2520 RTC Oscillator

32.768 kristal CMOS

Deskripsi Produk

SMD 2520 RTC Oscillator Dengan 32.768KHz Real Time Crystal Oscillator 1.8-3.3V CMOS Output ±25ppm

Fitur

Ukuran 2520, tinggi 0,8mm, 32,768kHz SMD kristal osilator

Tegangan operasi: 1,8 ~ 3,3V

Dibangun dalam ASIC memungkinkan pengurangan konsumsi saat ini

Fungsi 3-state tersedia

Pemasangan otomatis dan pemasangan arus kembali

Aplikasi: Aplikasi Jam Waktu Nyata, DSC, Set-top Box, HDTV, GPS, Ponsel, dll

RoHS Compliant & Bebas Pb

Spesifikasi

Jenis	2D Series 32.768kHz SMD Oscillator
Jenis output	CMOS
Beban output	15pF, atau tentukan
Frekuensi Nominal	32.768kHz
Tegangan Pasokan	1.8~3.3V
Pasokan arus	70mA maksimal.
Stabilitas Frekuensi	± 20 ppm, atau tentukan
Suhu operasi	-40 ~ + 85 °C
Suhu penyimpanan	-55~+125°C
Tegangan Vol (Max.) /Voh (Min.)	0.1Vcc /0.9Vcc
Waktu kenaikan (Tr) / penurunan (Tf)	50 sen maksimal.
Waktu Mulai	2ms maksimal.
Siklus Tugas	45 ~ 55%
Voltage 3-state Vol (Max.) /Voh (Min.)	0.3Vcc /0.7Vcc
Unit Pengemasan	3000 pcs/reel

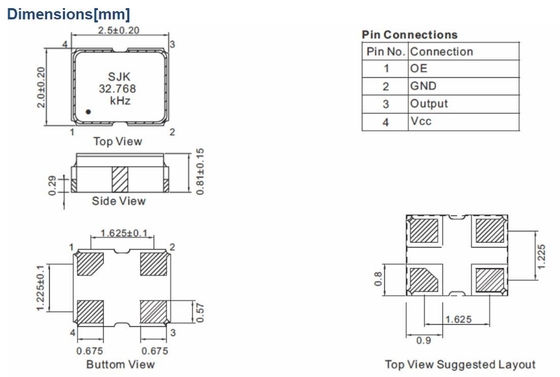

Dimensi [mm]

SMD 2520 RTC Oscillator Dengan 32.768KHz Real Time Crystal Oscillator 1.8-3.3V CMOS 0

SMD 2520 RTC Oscillator Dengan 32.768KHz Real Time Crystal Oscillator 1.8-3.3V CMOS 1 +86-755-88352869

SMD 2520 RTC Oscillator Dengan 32.768KHz Real Time Crystal Oscillator 1.8-3.3V CMOS 2 Rita@q-crystal.com
