Name: Through-Hole 14-Pin TCXO 10-52MHz 3.3V 10pF Klip Sinus Wave Output
Brand: Shenzhen Crystal Technology Industrial Co., Ltd.
SKU: SJK-6T
Price: 1,499.05 USD
Availability: InStock

Nama merek:	SJK
Nomor Model:	SJK-6T
MOQ:	1000 pcs
Harga:	negotiable
Rincian kemasan:	1Kp/tas
Ketentuan Pembayaran:	T/T

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

SGS, RoHS, REACH

Model:

6T SMD DIP-14TCXO

Rentang frekuensi:

1,25MHz~52MHz

Tegangan suplai:

2.8V/3.3V/5.0V

Stabilitas Frekuensi:

±0,5ppm~±1,0ppm

Ukuran:

20.4*12.8*7.8mm

Aplikasi:

GPS

Menyediakan kemampuan:

70KKpcs/M

Menyoroti:

vctcxo osilator 14 Pin

vctcxo osilator 3.3V 10pF

14 Pin 40mhz tcxo

Deskripsi Produk

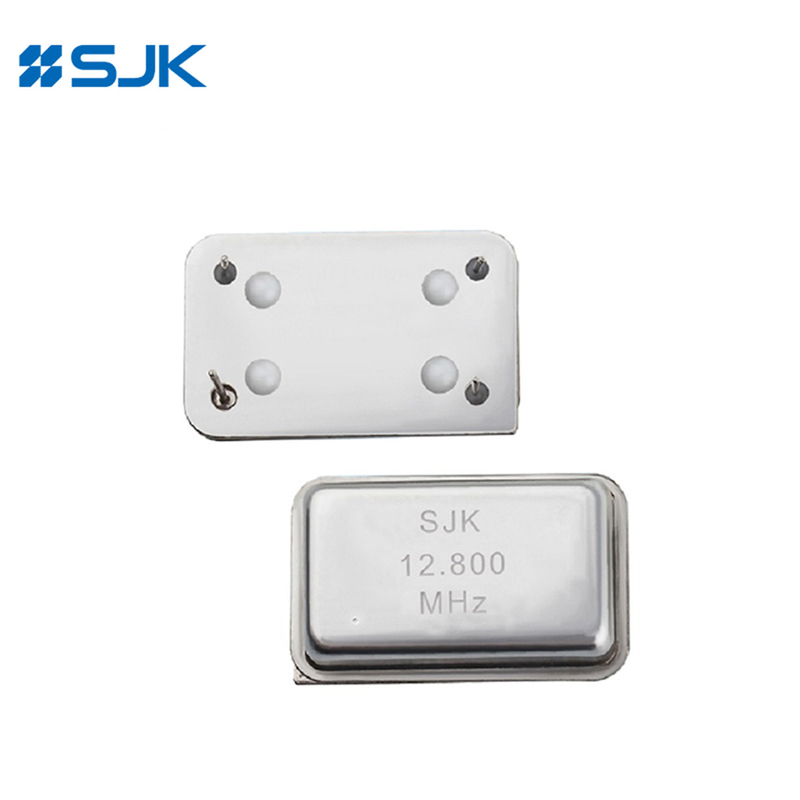

Through-Hole 14-Pin TCXO 10-52MHz 3.3V 10pF Klip Sinus Wave Output

Fitur

Biasanya 20,4×12,8×7,8mm, DIP TCXO/VCTCXO

Paket DIP-14 tertutup secara hermetis

Kasus logam bersegel ganda dan keandalan tinggi

VC-TCXO tersedia

Frekuensi output: 1,25MHz ~ 52MHz

CMOS atau output gelombang sinus terpotong

Aplikasi: Peralatan berskala besar, avionika, peralatan komunikasi, peralatan pengujian, dll.

RoHS Compliant & Pb-Free

Spesifikasi

Jenis		6T DIP TCXO / VC-TCXO
Jenis output		Gelombang sinus terpotong	CMOS
Beban output		10KΩ//10pF	15pF, atau tentukan
Jangkauan Frekuensi		10~52MHz	1.25 ~ 52MHz
Tegangan Pasokan		2.8V / 3.3V
Pasokan arus		4mA Max.	25mA maksimal.
Tingkat output		0.8Vp-p Min.	0.1Vcc/0.9Vcc
Stabilitas Frekuensi	Toleransi	±2,0ppm Max. (setelah 2 aliran kembali)
	vs Suhu	± 0,5 ppm ~ ± 1,0 ppm
	Vs Tegangan Pasokan (Vcc±5%)	± 0,2 ppm Max.
	vs Beban (Beban bervariasi ± 10%)	± 0,2 ppm Max.
	vs Penuaan	± 1,0 ppm Max.
Jangkauan kontrol frekuensi otomatis (AFC) (VCTCXO)		±5ppm~±10ppm (1.5±1V)
Waktu Mulai		2ms maksimal.
Suhu operasi		-40~+85°C, atau tentukan
Siklus Tugas			40 ~ 60%
Fase Noise @10MHz	100 kHz	-1115dBc/Hz
	1kHz	-135dBc/Hz
	10kHz	-148dBc/Hz
Unit Pengemasan		100 pcs.

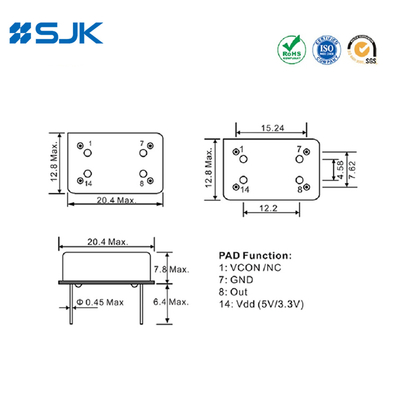

Dimensi [mm]

Through-Hole 14-Pin TCXO 10-52MHz 3.3V 10pF Klip Sinus Wave Output 0

Through-Hole 14-Pin TCXO 10-52MHz 3.3V 10pF Klip Sinus Wave Output 1 +86-755-88352869

Through-Hole 14-Pin TCXO 10-52MHz 3.3V 10pF Klip Sinus Wave Output 2 Rita@q-crystal.com
