SMD 3225 TCXO Dengan Output Sinewave Clipped 32.000MHz 1.8-3.3V

Nama merek:	SJK
MOQ:	3000PCS
Harga:	negotiable
Rincian kemasan:	3Kpcs/Gulungan
Ketentuan Pembayaran:	T/T

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Nama merek:

SJK

Sertifikasi:

SGS, RoHS, REACH

Model:

Seri 7T SMD TCXO / VC-TCXO

Rentang frekuensi:

10~52MHz

Tegangan suplai:

1.8V~3.3V

Stabilitas Frekuensi:

±0,5ppm~±2,0ppm

Ukuran:

3.2*2.5*0.9mm

Aplikasi:

Ponsel, GPS, Komunikasi nirkabel, IoT, dll.

Kuantitas min Order:

3000PCS

Harga:

negotiable

Kemasan rincian:

3Kpcs/Gulungan

Waktu pengiriman:

4-6 minggu

Syarat-syarat pembayaran:

T/T

Menyediakan kemampuan:

70KKpcs/M

Menyoroti:

3.2 x 2

5 x 0

9 mm x x

Deskripsi Produk

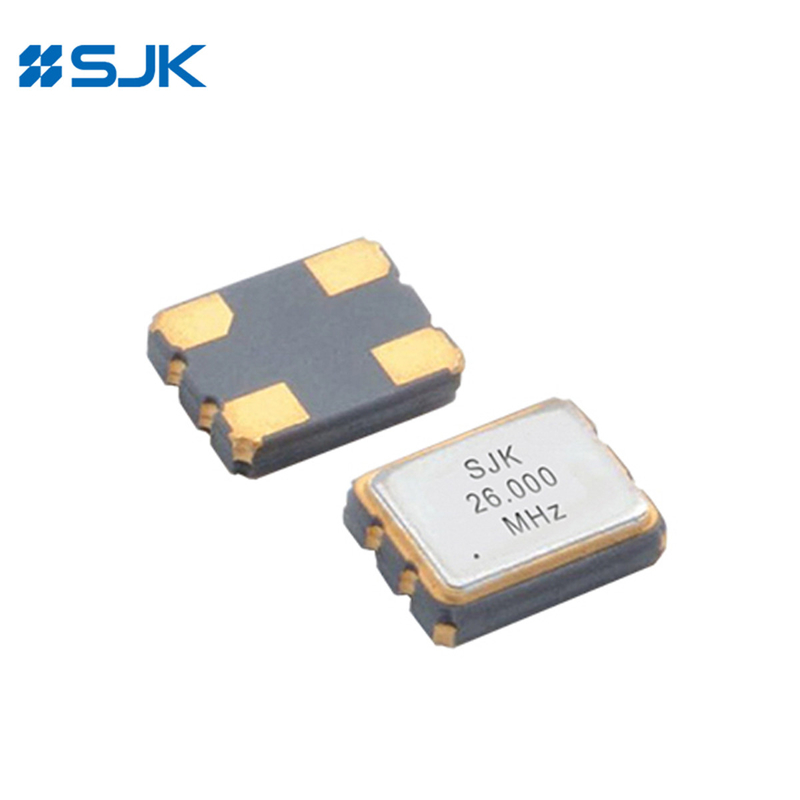

SMD 3225 TCXO Dengan Output Sinewave Clipped 32.000MHz 1.8-3.3V

Fitur

Rentang frekuensi output dari 10MHz hingga 52MHz

Ukuran 3225, SMD tinggi 0,90mm TCXO /VC-TCXO

Operasi tegangan rendah dan kebisingan fase rendah

Stabilitas suhu: ± 0,5 ppm ~ ± 2,5 ppm

VCTCXO tersedia

Pemasangan otomatis dan pemasangan arus kembali

Aplikasi: Smartphone, Wearables, IoT, GPS, WLAN dan banyak lagi

RoHS Compliant & Pb-Free

Spesifikasi

Jenis		SMD Seri 7T TCXO / VC-TCXO
Jenis output		Gelombang sinus terpotong
Beban output		10KΩ//10pF
Tegangan Pasokan		1.8~3.3V
Jangkauan Frekuensi		10~52MHz
Pasokan arus		2.0mA Max.
Tingkat output		0.8Vp-p Min.
Stabilitas Frekuensi	Toleransi	±2,0ppm Max. (setelah 2 aliran kembali)
	vs Suhu	± 0,5 ppm ~ ± 2,5 ppm
	Vs Tegangan Pasokan	± 0,2 ppm Max. (Vcc±5%)	± 0,2 ppm Max. (Vcc±5%)
	vs Beban	± 0,2 ppm Max. (Pengisian bervariasi ± 10%)
	vs Penuaan	± 1,0 ppm Maks./tahun
Jangkauan Kontrol Frekuensi Otomatis (AFC)		±5ppm~±10ppm (1.4±1V)
Waktu Mulai		2ms maksimal.
Suhu operasi		-40 ~ + 85 °C
Fase Noise @ 19.2MHz	100Hz	-115dBc/Hz
	1KHz	-135dBc/Hz
	10KHz	-148dBc/Hz
Unit Pengemasan		3000 pcs/reel

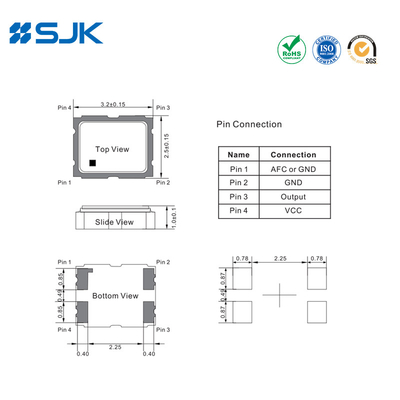

Dimensi [mm]

SMD 3225 TCXO Dengan Output Sinewave Clipped 32.000MHz 1.8-3.3V 0

SMD 3225 TCXO Dengan Output Sinewave Clipped 32.000MHz 1.8-3.3V 1 +86-755-88352869

SMD 3225 TCXO Dengan Output Sinewave Clipped 32.000MHz 1.8-3.3V 2 Rita@q-crystal.com

Tag:

3.2 x 2

5 x 0

9 mm x x

Produk terkait

Video

1612 SMD TCXO Atau VC-TCXO 10~52MHz 1.8V~3.3V ±0.5ppm -40~+85°C Output Sinewave Clipped

Dapatkan Harga Terbaik

Video

3225 SMD TCXO Dengan 38.4MHz 3.3V Clipped Sinewave Output

Dapatkan Harga Terbaik

Video

SMD Ukuran Besar 14 X 9.0mm TCXO 5 ~ 40MHz 3.3V Untuk Stasiun Basis

Dapatkan Harga Terbaik

Video

SMD 7050 TCXO Dengan 26.000MHz 1.8-3.3V Clipped Sinewave Output

Dapatkan Harga Terbaik

Video

SMD 5032 TCXO Dengan Sinewave Clipped Output 10 ~ 52MHz 1.8-3.3V

Dapatkan Harga Terbaik

Video

SMD 3225 TCXO Dengan Output Sinewave Clipped 32.000MHz 1.8-3.3V

Dapatkan Harga Terbaik

Video

SMD 2520 TCXO / VC-TCXO Crystal Oscillators dengan Output Sinewave Clip

Dapatkan Harga Terbaik

Video

SMD 2016 TCXO VC-TCXO Crystal Oscillators Dengan Output Sinewave Clip 26-52MHz Untuk GPS

Dapatkan Harga Terbaik

Resonator Kristal

Seri 6A, Unit Kristal HC-49/U

Seri 6B, Unit Kristal HC-49S/SS

Seri 6C, Unit Kristal HC-49SMD/49SSMD

Seri 6P HC-M49SMD Unit Kristal

Seri 6D, Unit Kristal UM-1

Seri 6Z, Unit Kristal Tipe Silinder

Seri 7S, SMD 1210 Seam Crystal Unit

Seri 7Y, SMD 1612 Seam Crystal Unit

Seri 7F, SMD 2016 Seam Crystal Unit

Seri 7E, SMD 2520 Seam Crystal Unit

Seri 7U, SMD 3225 Seam Crystal Unit

Seri 7I, SMD 5032 Seam Crystal Unit

Seri 6G, SMD 6035 Seam Crystal Unit

Seri 6F, SMD 7050 Seam Crystal Unit

Seri 7Z, SMD 2520 Glass Crystal Unit

Seri 7V, SMD 3225 Glass Crystal Unit

Seri 6I, SMD 5032 Glass Crystal Unit

SMD 6035 Unit Kristal Kaca

32.768KHz tuning fork kristal

Seri 7K, SMD 1610 Tuning Fork Crystal

Seri 7R, SMD 2012 Tuning Fork Crystal

Seri 7L, SMD 3215 Tuning Fork Crystal

Seri 7M, SMD 7015 Tuning Fork Crystal

Seri 6LC, SMD 8038 Tuning Fork Crystal

Seri 6LB, SMD 206B Tuning Fork Crystal

Seri 6K6, Through-Hole 2*6mm Tuning Fork Crystal

Seri 6K8, Through-Hole 3 * 8mm Tuning Fork Crystal

Osilator kristal

Seri 8N, SMD 1612 Crystal Oscillator

Seri 1N, SMD 2016 Crystal Oscillator

Seri 2N, SMD 2520 Crystal Oscillator

Seri 3N, SMD 3225 Crystal Oscillator

Seri 7N, SMD 5032 Crystal Oscillator

Seri 6N, SMD 7050 Crystal Oscillator

Seri 9N, SMD 1490 Crystal Oscillator

Seri 6MF, Through-Hole Full Size Crystal Oscillator

Seri 6MH, Thru-Hole Half Size Crystal Oscillator

Osilator Diferensial

Seri 3J, SMD 3225 LVPECL Output Oscillator

Seri 3D, SMD 3225 LVDS Output Oscillator

Seri 3H, SMD 3225 HCSL Output Oscillator

Seri 5J, SMD 5032 LVPECL Output Oscillator

Seri 5D, SMD 5032 LVDS Output Oscillator

Seri 5H, SMD 5032 HCSL Output Oscillator

Seri 7J, SMD 7050 LVPECL Output Oscillator

Seri 7B, SMD 7050 LVDS Output Oscillator

Seri 7H, SMD 7050 HCSL Output Oscillator

Seri 9J, SMD 1490 LVPECL Output Oscillator

Seri 9D, SMD 1490 LVDS Output Oscillator

Oxo

Seri 1X, SMD 9*7 Ukuran OCXO

Seri 9X, SMD 14*9*5 Ukuran OCXO

Seri 5X, SMD 25*22*11 Ukuran OCXO

Seri 2X, Through-hole OCXO

Seri 3X, Through-hole 20*20 OCXO

Seri 9M, Through-hole 25*25*12 OCXO

Seri 6X, Through-hole 36*27*12 Ukuran OCXO

TCXO/VC-TCXO

Seri 7X, SMD 2016 TCXO / VC-TCXO

Seri 7Q, SMD 2520 TCXO / VC-TCXO Clipped Sinus Wave

Seri 7T, SMD 3225 TCXO / VC-TCXO CMOS

Seri 5T, SMD 5032 TCXO / VC-TCXO

Seri 8T, SMD 7050 TCXO / VC-TCXO

Seri 9T, SMD 1490 TCXO / VC-TCXO

Seri 6T, Through-hole TCXO / VC-TCXO

Seri 1T SMD 1612 TCXO/VC-TCXO

Seri 8W SMD 3225 TCXO /VC-TCXO (Clipped sine wave)

Seri 7W SMD 2520 TCXO /VC-TCXO (CMOS)

VCXO

Seri 3S, SMD 3225 CMOS Output VCXO

Seri 3P, SMD 3225 LVPECL Output VCXO

Seri 5S, SMD 5032 CMOS Output VCXO

Seri 5P, SMD 5032 LVPECL Output VCXO

Seri 5V, SMD 5032 LVDS Output VCXO

Seri 6S, SMD 7050 CMOS Output VCXO

Seri 7P, SMD 7050 LVPECL Output VCXO

Seri 6V, SMD 7050 LVDS Output VCXO

Seri 9S, SMD 1490 CMOS Output VCXO

Seri 9P, SMD 1490 LVPECL Output VCXO

Seri 9X, SMD 1495 Ukuran OCXO

Seri 5X, SMD 252211 Ukuran OCXO

Seri 9M, Through-hole 252512 OCXO

Seri 6X, Through-hole 362712 Ukuran OCXO
