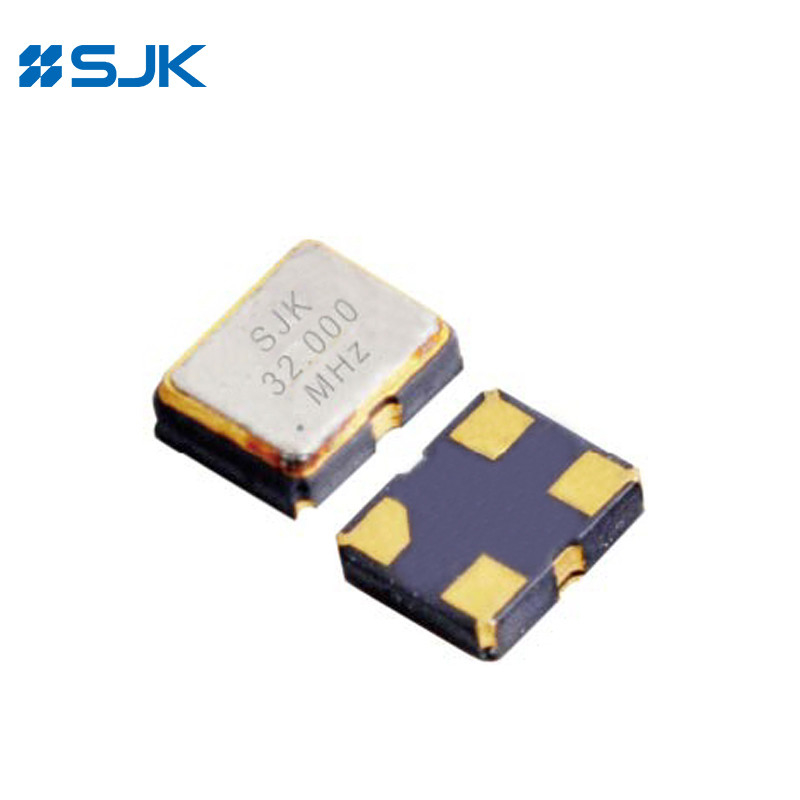

Name: SMD 2520 TCXO 32.000MHz 1.8-3.3V Clipped Sine Wave Output ± 0.5ppm -40~+85°C
Brand: Shenzhen Crystal Technology Industrial Co., Ltd.
SKU: SJK-7Q32000M3C04K0A6
Price: 1,499.05 USD
Availability: InStock

Nama merek:	SJK
Nomor Model:	SJK-7Q32000M3C04K0A6
MOQ:	3000PCS
Harga:	negotiable
Rincian kemasan:	3Kpcs/Gulungan
Ketentuan Pembayaran:	T/T

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

SGS, RoHS, REACH

Model:

SMD TCXO seri 7Q

Rentang frekuensi:

10~60MHz

Tegangan suplai:

1,8 ~ 3,3V

Jenis output:

CMOS

Ukuran:

2,5*2,0*0,85mm

Stabilitas Frekuensi:

±0,5ppm~±1,0ppm

Aplikasi:

GPS, Komunikasi Nirkabel, Ponsel, dll.

Menyediakan kemampuan:

70KKpcs/M

Menyoroti:

tcxo osilator SMD 2520

tcxo osilator 32.000MHz

3.3V tcxo modul

Deskripsi Produk

SMD 2520 TCXO 32.000MHz 1.8-3.3V Clipped Sine Wave Output ± 0.5ppm -40~+85°C

Fitur

Logika output LVCMOS, kisaran frekuensi dari 10MHz hingga 60MHz

Ukuran 2520, SMD tinggi 0,80mm TCXO /VC-TCXO

Operasi tegangan rendah: 1.8V, 2.5V, 2.8V, 3.3V

Stabilitas frekuensi: ±2ppm~±5ppm

Fungsi 3-state

Pemasangan otomatis dan pemasangan arus kembali

Aplikasi: Ponsel, Komunikasi Wireless, IoT, GPS, WLAN, dan banyak lagi

RoHS Compliant & Pb-Free

Spesifikasi

Jenis		SMD seri 7Q TCXO
Jenis output		CMOS
Beban output		15pF
Tegangan Pasokan		1.8~3.3V
Jangkauan Frekuensi		10~60MHz
Pasokan arus		10mA maksimal.
Tingkat output		0.1Vcc /0.9Vcc
Stabilitas Frekuensi	Toleransi	±2,0ppm Max. (setelah 2 aliran kembali)
	vs Suhu	± 2 ppm ~ ± 5 ppm
	Vs Tegangan Pasokan	± 0,2 ppm Max.	± 0,2 ppm Max.
	vs Penuaan	± 1,0 ppm Maks./tahun
Siklus Tugas		45 ~ 55%
Waktu Naik / Turun		8 inci maksimal.
Waktu Mulai		5ms maksimal.
Suhu operasi		-40~+85°C, atau tentukan
Fase Noise @26MHz	100Hz	-110dBc/Hz
	1KHz	-130dBc/Hz
	10KHz	-145dBc/Hz
Unit Pengemasan		3000 pcs/reel

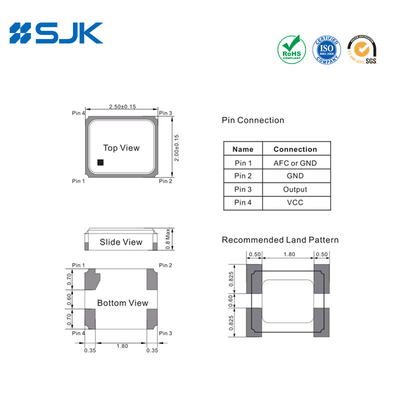

Dimensi [mm]

SMD 2520 TCXO 32.000MHz 1.8-3.3V Clipped Sine Wave Output ± 0.5ppm -40~+85°C 0

SMD 2520 TCXO 32.000MHz 1.8-3.3V Clipped Sine Wave Output ± 0.5ppm -40~+85°C 1 +86-755-88352869

SMD 2520 TCXO 32.000MHz 1.8-3.3V Clipped Sine Wave Output ± 0.5ppm -40~+85°C 2 Rita@q-crystal.com
